Unit Conversion

The sdf-xarray package automatically extracts the units for each coordinate/variable/constant from an SDF file and stores them as an xarray.Dataset attribute called "units". Sometimes we want to convert our data from one format to another, e.g. converting the grid coordinates from meters to microns, time from seconds to femto-seconds or particle energy from Joules to electron-volts.

In [1]: from sdf_xarray import open_mfdataset

In [2]: import matplotlib.pyplot as plt

In [3]: plt.rcParams.update({
   ...:     "axes.labelsize": 16,
   ...:     "xtick.labelsize": 14,
   ...:     "ytick.labelsize": 14,
   ...:     "axes.titlesize": 16
   ...: })
   ...:

Rescaling Coordinates

For simple scaling and unit relabeling of coordinates (e.g., converting meters to microns), the most straightforward approach is to use the rescale_coords() method via the custom xarray.Dataset.epoch dataset accessor.

This method scales the coordinate values by a given multiplier and updates the "units" attribute in one step.

Rescaling Grid Coordinates

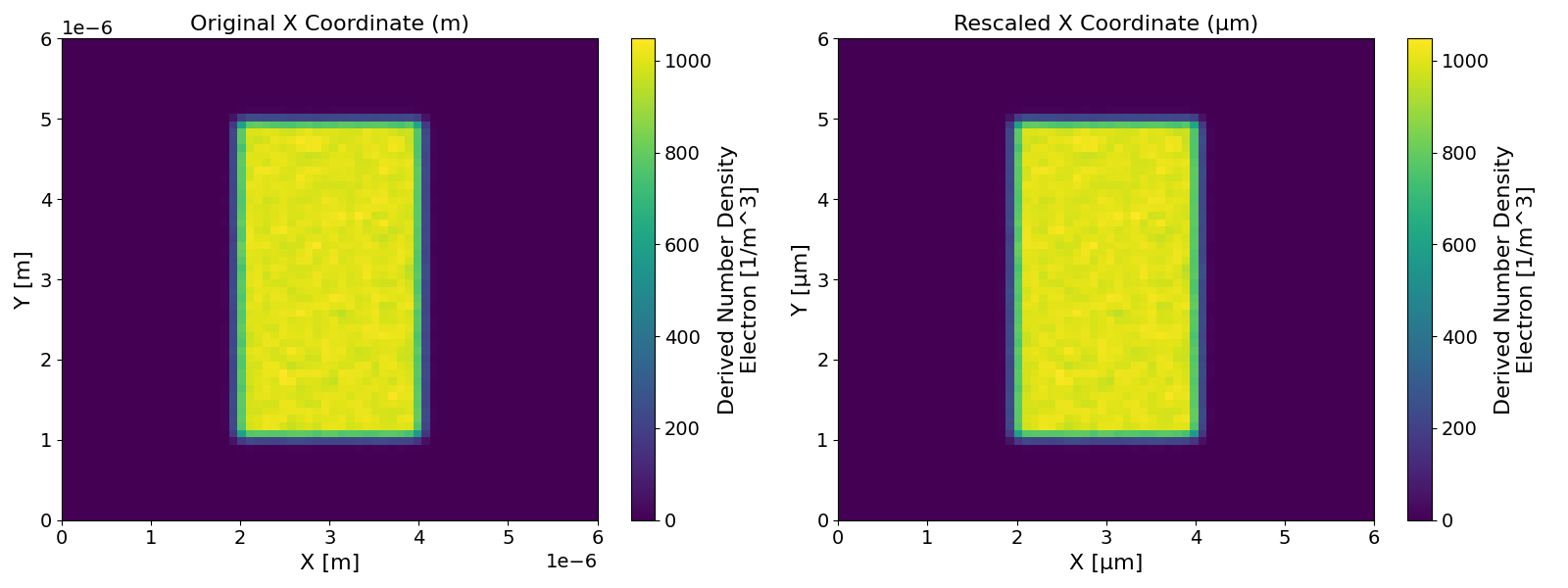

We can use the xarray.Dataset.epoch.rescale_coords() method to convert X, Y, and Z coordinates from meters (m) to microns (µm) by applying a multiplier of 1e6.

In [4]: fig, (ax1, ax2) = plt.subplots(1, 2, figsize=(16, 6))

In [5]: with open_mfdataset("tutorial_dataset_2d/*.sdf") as ds:
   ...:     ds_in_microns = ds.epoch.rescale_coords(
   ...:         multiplier=1e6,
   ...:         unit_label="µm",
   ...:         coord_names=["X_Grid_mid", "Y_Grid_mid"]
   ...:     )
   ...:     derived_number_density = ds["Derived_Number_Density_Electron"].isel(time=0).compute()
   ...:     derived_number_density_microns = ds_in_microns["Derived_Number_Density_Electron"].isel(time=0).compute()
   ...:

In [6]: derived_number_density.plot(ax=ax1, x="X_Grid_mid", y="Y_Grid_mid")
Out[6]: <matplotlib.collections.QuadMesh at 0x7de1b666bad0>

In [7]: ax1.set_title("Original X Coordinate (m)")
Out[7]: Text(0.5, 1.0, 'Original X Coordinate (m)')

In [8]: derived_number_density_microns.plot(ax=ax2, x="X_Grid_mid", y="Y_Grid_mid")
Out[8]: <matplotlib.collections.QuadMesh at 0x7de1b5bc5850>

In [9]: ax2.set_title("Rescaled X Coordinate (µm)")
Out[9]: Text(0.5, 1.0, 'Rescaled X Coordinate (µm)')

In [10]: fig.tight_layout()

Rescaling Time Coordinate

We can also use the xarray.Dataset.epoch.rescale_coords() method to convert the time coordinate from seconds (s) to femto-seconds (fs) by applying a multiplier of 1e15.

In [11]: with open_mfdataset("tutorial_dataset_2d/*.sdf") as ds:
   ....:     ds_time_in_femto = ds.epoch.rescale_coords(
   ....:         multiplier=1e15,
   ....:         unit_label="fs",
   ....:         coord_names="time"
   ....:     )
   ....:

In [12]: print(f"[Original] units: {ds['time'].attrs['units']}, values: {ds['time'].values}")
[Original] units: s, values: [1.05033826e-16 1.05033826e-15 2.10067652e-15 3.15101478e-15
 4.20135304e-15 5.04162364e-15]

In [13]: print(f"[Rescaled] units: {ds_time_in_femto['time'].attrs['units']}, values: {ds_time_in_femto['time'].values}")
[Rescaled] units: fs, values: [0.10503383 1.05033826 2.10067652 3.15101478 4.20135304 5.04162364]

Unit Conversion with pint-xarray

While this is sufficient for most use cases, we can enhance this functionality using the pint library. Pint allows us to specify the units of a given array and convert them to another, which is incredibly handy. We can take this a step further, however, and utilize the pint-xarray library. This library allows us to infer units directly from an xarray.Dataset.attrs while retaining all the information about the xarray.Dataset. This works very similarly to taking a NumPy array and multiplying it by a constant or another array, which returns a new array; however, this library will also retain the unit logic (specifically the "units" information).

Note

Unit conversion is not supported on coordinates in pint-xarray which is due to an underlying issue with how xarray implements indexes.

Installation

To install the pint libraries you can simply run the following optional dependency pip command which will install both the pint and pint-xarray libraries. You can install these optional dependencies via pip:

$ pip install "sdf_xarray[pint]"

Note

Once you install pint-xarray it is automatically picked up and loaded by the code so you should have access to the xarray.Dataset.pint accessor.

Quantifying Arrays

When using pint-xarray, the library attempts to infer units from the "units" attribute on each xarray.DataArray. Alternatively, you can also specify the units yourself by passing a string into the xarray.Dataset.DataArray.pint.quantify() function call. Once the type is inferred the original xarray.DataArray will be converted to a pint.Quantity and the "units" attribute will be removed.

In the following example we will extract the time-resolved total particle energy of electrons which is measured in Joules and convert it to electron volts.

In [14]: with open_mfdataset("tutorial_dataset_1d/*.sdf") as ds:
   ....:     total_particle_energy = ds["Total_Particle_Energy_Electron"]
   ....:

In [15]: total_particle_energy
Out[15]:
<xarray.DataArray 'Total_Particle_Energy_Electron' (time: 41)> Size: 328B
array([0.00000000e+00, 0.00000000e+00, 0.00000000e+00, 0.00000000e+00,
       0.00000000e+00, 0.00000000e+00, 6.16297956e-49, 7.88767274e+08,
       1.46399149e+10, 1.85356925e+10, 8.20911178e+10, 1.46399689e+11,
       2.13329905e+11, 3.12548212e+11, 4.36718243e+11, 6.24956976e+11,
       7.19987930e+11, 9.92646565e+11, 1.11894822e+12, 1.29952607e+12,
       1.40298758e+12, 1.57296105e+12, 1.62340949e+12, 1.70344443e+12,
       1.79842990e+12, 1.80376945e+12, 1.95646327e+12, 2.05185757e+12,
       1.92225359e+12, 2.13258118e+12, 2.01732090e+12, 2.13525146e+12,
       2.21021605e+12, 2.17954627e+12, 2.22069602e+12, 2.28332716e+12,
       2.26454688e+12, 2.40372045e+12, 2.39052381e+12, 2.33472047e+12,
       2.42629115e+12])
Coordinates:
  * time     (time) float64 328B 2.606e-17 5.003e-15 ... 1.95e-13 2e-13
Attributes:
    full_name:  Total Particle Energy/Electron
    long_name:  Total Particle Energy Electron
    units:      J

In [16]: total_particle_energy = ds["Total_Particle_Energy_Electron"].pint.quantify()

In [17]: total_particle_energy
Out[17]:
<xarray.DataArray 'Total_Particle_Energy_Electron' (time: 41)> Size: 328B
<Quantity([0.00000000e+00 0.00000000e+00 0.00000000e+00 0.00000000e+00
 0.00000000e+00 0.00000000e+00 6.16297956e-49 7.88767274e+08
 1.46399149e+10 1.85356925e+10 8.20911178e+10 1.46399689e+11
 2.13329905e+11 3.12548212e+11 4.36718243e+11 6.24956976e+11
 7.19987930e+11 9.92646565e+11 1.11894822e+12 1.29952607e+12
 1.40298758e+12 1.57296105e+12 1.62340949e+12 1.70344443e+12
 1.79842990e+12 1.80376945e+12 1.95646327e+12 2.05185757e+12
 1.92225359e+12 2.13258118e+12 2.01732090e+12 2.13525146e+12
 2.21021605e+12 2.17954627e+12 2.22069602e+12 2.28332716e+12
 2.26454688e+12 2.40372045e+12 2.39052381e+12 2.33472047e+12
 2.42629115e+12], 'joule')>
Coordinates:
  * time     (time) float64 328B [s] 2.606e-17 5.003e-15 ... 1.95e-13 2e-13
Indexes:
    time     PintIndex(PandasIndex, units={'time': 's'})
Attributes:
    full_name:  Total Particle Energy/Electron
    long_name:  Total Particle Energy Electron

Now that this dataset has been converted a pint.Quantity, we can check it’s units and dimensionality

In [18]: total_particle_energy.pint.units
Out[18]: <Unit('joule')>

In [19]: total_particle_energy.pint.dimensionality
Out[19]: <UnitsContainer({'[length]': 2, '[mass]': 1, '[time]': -2})>

Converting Units

We can now convert it to electron volts utilising the pint.Quantity.to function

In [20]: total_particle_energy_ev = total_particle_energy.pint.to("eV")

Unit Propagation

Suppose instead of converting to "eV", we want to convert to "W" (watts). To do this, we divide the total particle energy by time. However, since coordinates in xarray.Dataset cannot be directly converted to pint.Quantity, we must first extract the coordinate values manually and create a new Pint quantity for time.

Once both arrays are quantified, Pint will automatically handle the unit propagation when we perform arithmetic operations like division.

Note

Pint does not automatically simplify "J/s" to "W", so we use pint.Quantity.to to convert the unit string. Since these units are the same it will not change the underlying data, only the units. This is only a small formatting choice and is not required.

In [21]: import pint

In [22]: time_values = total_particle_energy.coords["time"].data

In [23]: time = pint.Quantity(time_values, "s")

In [24]: total_particle_energy_w = total_particle_energy / time

In [25]: total_particle_energy_w.pint.units
Out[25]: <Unit('joule / second')>

In [26]: total_particle_energy_w = total_particle_energy_w.pint.to("W")

In [27]: total_particle_energy_w.pint.units
Out[27]: <Unit('watt')>

Dequantifying and Restoring Units

Note

If this function is not called prior to plotting then the units will be inferred from the pint.Quantity array which will return the long name of the units. i.e. instead of returning "eV" it will return "electron_volt".

The xarray.Dataset.DataArray.pint.dequantify function converts the data from pint.Quantity back to the original xarray.DataArray and adds the "units" attribute back in. It also has an optional format parameter that allows you to specify the formatting type of "units" attribute. We have used the format="~P" option as it shortens the unit to its “short pretty” format ("eV"). For more options, see the Pint formatting documentation.

In [28]: total_particle_energy_ev = total_particle_energy_ev.pint.dequantify(format="~P")

In [29]: total_particle_energy_w = total_particle_energy_w.pint.dequantify(format="~P")

In [30]: total_particle_energy_ev
Out[30]:
<xarray.DataArray 'Total_Particle_Energy_Electron' (time: 41)> Size: 328B
array([0.00000000e+00, 0.00000000e+00, 0.00000000e+00, 0.00000000e+00,
       0.00000000e+00, 0.00000000e+00, 3.84662929e-30, 4.92309810e+27,
       9.13751620e+28, 1.15690693e+29, 5.12372457e+29, 9.13754989e+29,
       1.33150054e+30, 1.95077250e+30, 2.72578088e+30, 3.90067464e+30,
       4.49381120e+30, 6.19561254e+30, 6.98392546e+30, 8.11100375e+30,
       8.75675970e+30, 9.81765064e+30, 1.01325251e+31, 1.06320639e+31,
       1.12249166e+31, 1.12582434e+31, 1.22112832e+31, 1.28066877e+31,
       1.19977633e+31, 1.33105248e+31, 1.25911267e+31, 1.33271914e+31,
       1.37950836e+31, 1.36036578e+31, 1.38604944e+31, 1.42514072e+31,
       1.41341899e+31, 1.50028430e+31, 1.49204760e+31, 1.45721790e+31,
       1.51437182e+31])
Coordinates:
  * time     (time) float64 328B 2.606e-17 5.003e-15 ... 1.95e-13 2e-13
Attributes:
    full_name:  Total Particle Energy/Electron
    long_name:  Total Particle Energy Electron
    units:      eV

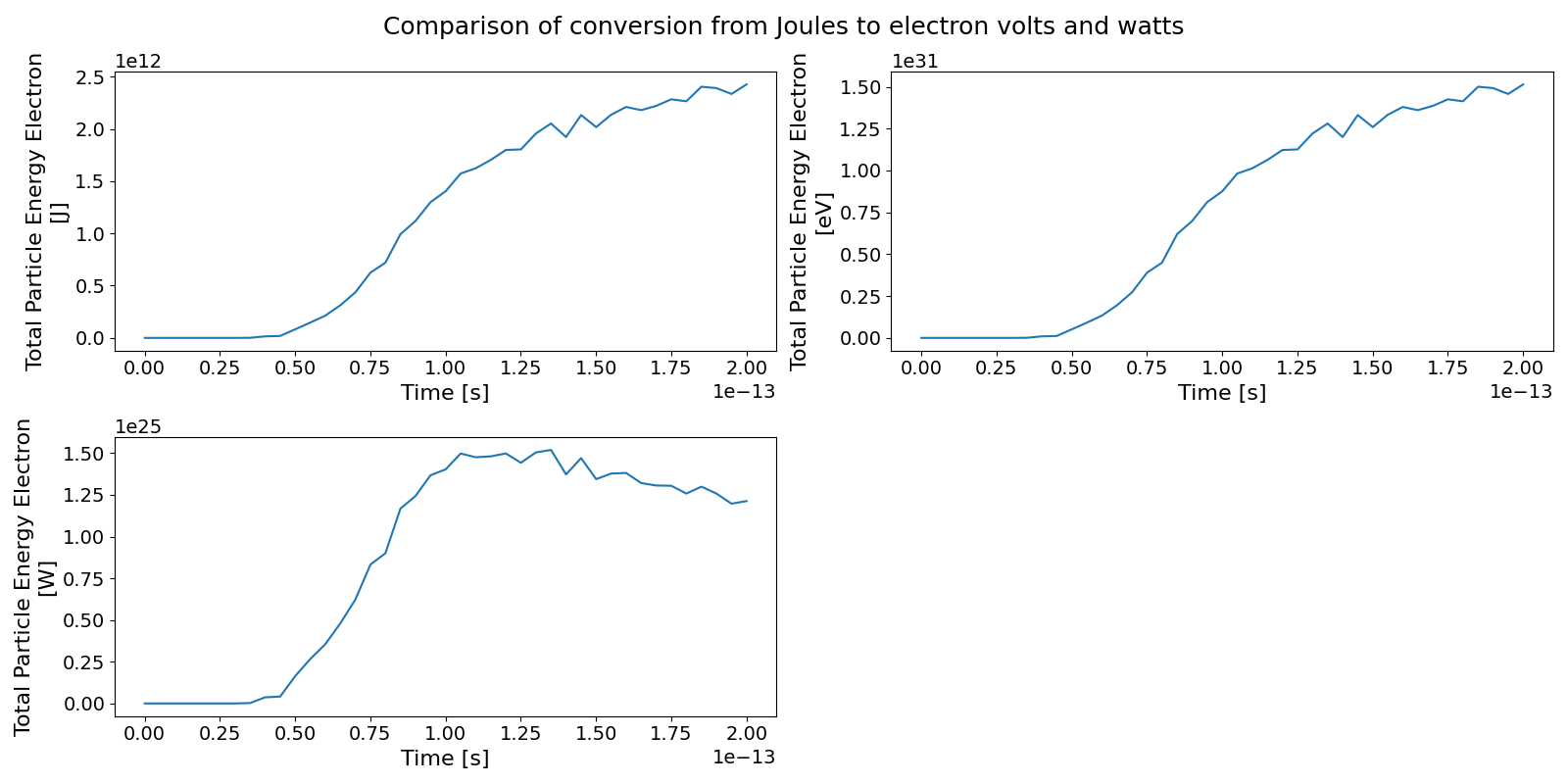

To confirm the conversion has worked correctly, we can plot the original and converted xarray.Dataset side by side:

In [31]: fig, ((ax1, ax2), (ax3, ax4)) = plt.subplots(2, 2, figsize=(16,8))

In [32]: ds["Total_Particle_Energy_Electron"].plot(ax=ax1)
Out[32]: [<matplotlib.lines.Line2D at 0x7de1b6736ea0>]

In [33]: total_particle_energy_ev.plot(ax=ax2)
Out[33]: [<matplotlib.lines.Line2D at 0x7de1b6586d20>]

In [34]: total_particle_energy_w.plot(ax=ax3)
Out[34]: [<matplotlib.lines.Line2D at 0x7de1b6587f50>]

In [35]: ax4.set_visible(False)

In [36]: fig.suptitle("Comparison of conversion from Joules to electron volts and watts", fontsize="18")
Out[36]: Text(0.5, 0.98, 'Comparison of conversion from Joules to electron volts and watts')

In [37]: fig.tight_layout()
